Proxxon - 27100 - Mesa de micro compuesto KT 70.

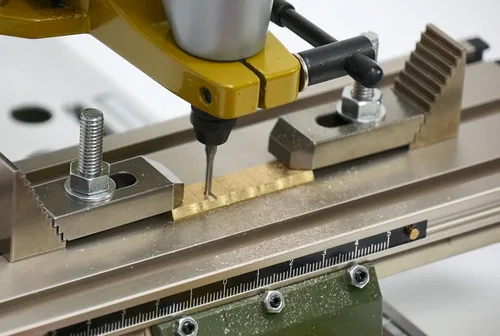

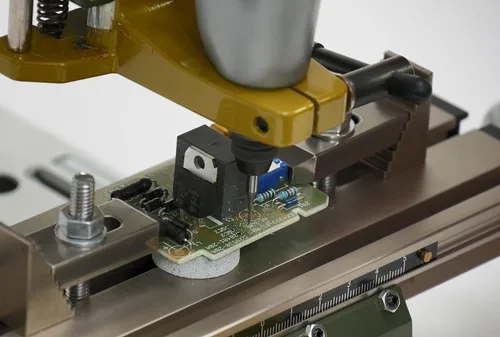

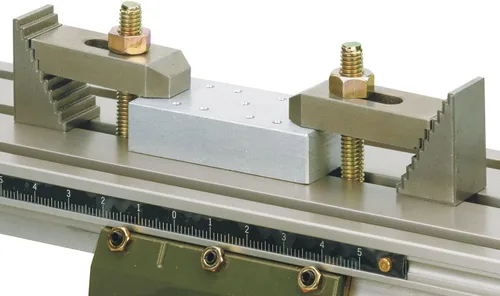

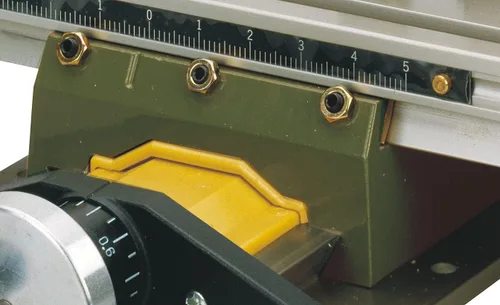

Reseña del editor This high-precision cross slide table is the optimal attachment when working with the MICROMOT drill stand MB 200, the bench drill machine TBM 115 or the machine vice MS 4. Clamping accessories for easy attachment on or below the above items come with the table. Of course, the table can also be used with other drill stands or drill presses. The table is made from surface-treated aluminum, has three longitudinal T-slots and provides dual axes (lateral and cross) positioning via two hand wheels. The hand wheels have zero-resettable dials graduated in 0,05mm increments (1 complete revolution of the hand wheel = 1.0mm, 1 pitch line = 0.05mm feed). One set of step clamps is included. Other technical data: Table size: 7 7/8"" x 2 3/4"" (200 x 70mm), with 3 T-slots in size 15/32"" x 15/64"" x 13/64"" (12 x 6 x 5mm), distance from center-to-center 63/64"" (25mm). X-travel 5 9/32"" (134mm), Y-travel 1 13/16"" (46mm). Overall height: 1 11/16"" (43mm). De The Manufacturer Proxxon german engineered micro compound table KT70 for precise milling, facing, drilling or grinding operations as well as positioning. This high precision table is the optimal attachment when used with micromot drill stand MB140/S number 28606, the bench drill machine TBM115 number 38128 and machine vise MS4 number 28132. table is made from surface treated aluminum for precision work surface; had three longitudinal T-slots and provides dual axis (lateral and cross) positioning via two hand wheels for precise adjustments. Backlash is controlled by adjustable dovetails. Hand wheels have zero resettable dials graduated in 0.05mm increments (one complete revolution of hand wheel equals 1.0mm complete revolution of hand wheel equals 1.0mm, one pitch line equals 0.05mm feed) for very precise and accurate set up.
