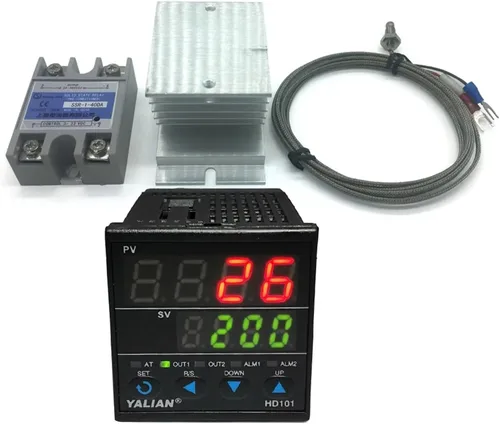

Pid Digital Temperature Controller Max Adjust Temperature 1372 Degrees Celsius+Heat Sink+2M K Thermocouple+Max 40A SSR(HD101)

Temperature ControllersProduct Features:Dual display for both set temperature and process temperatureSize, 48*48mm, 72*72mm, 48*96mm, 96*96mmUniversal input, support 10 different types of thermocouples and inputs by customers selected at panels.Uses it in Heating Control as well as for Cooling controlAuto-tune function can find the best PID parameter automaticallyDisplays temperature in Celsius (degC)Uses it for Kiln,Furnace,Oven,Incubator temperature controLIt is used in various industries to control and monitor process temperatureInput TypeThermocouple: K, E, S, R, J, T, B: Pt100, Cu50( The User can set the input signal type according the requirement. )Input Range0 ~+1300ordmC K(this is the default setting. User can set the temperature range which you wanted.)DisplayTwo lines, Four digits in Celsius degC.Display Resolution1degC, or 0.1degC if Pt100 inputAccuracy+/-0.5% or +/-1 unit of full input rangeControl modePID, ON/OFFControl OutputRelay contact: 3A at 240 VAC.AlarmAlarm 1 ( Upper-limit bias alarm , User can change to be other Alarm Mode.)Power Consumption<;2 WattPower Supply100~240V AC, 50/60Hz.ItemoutlineDimensionsHD101 48*48*70mmHD402 48*96*70mmHD701 72*72*70mmHD901 96*96*70mmMounting Hole SizeHD101 46*46mmHD402 46*93mmHD701 69*69mmHD901 93*93mmPackage Included:1 x PID Temperature Controller1 x 2M screw K Type Probe Sensor1 x Max.40A SSR1 X Heat Sink

Temperature Controllers Pid digital temperature controller Max adjust temperature 1372 degrees Celsius+heat sink+2M K Thermocouple+Max 40A SSR
