Digital PID Temperature Controller Max Measuring temperatur 1372ºC thermocouple Input Relay Output Dual Display for Celsius(C)

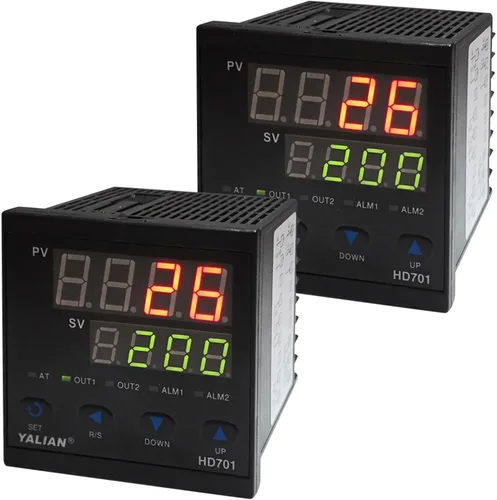

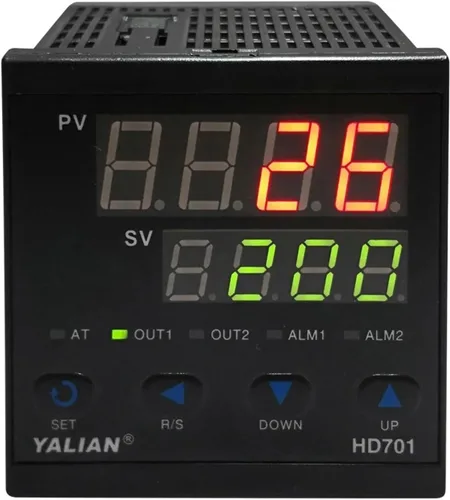

Temperature ControllersProduct Features:.Dual display for both set temperature and process temperature.Size, 72*72mm.Universal input, support 10 different types ofthermocouples and inputs by customers selected at panels..Uses it in Heating Control as well as for Cooling control.Auto-tune function can find the best PID parameter automatically.Displays temperature inCelsius(°C).Uses it for Kiln,Furnace,Oven,Incubator temperature controL.It is used in various industries to control and monitor process temperatureProduct Main Specifications:Input TypeThermocouple: K, E, S, R, J, T, B: Pt100, Cu50( The Usercan set the input signal type according the requirement. )Input Range0 ~+1372ºC K(this is the default setting. Usercan set thetemperaturerangewhich you wanted.)DisplayTwo lines, Four digitsin Celsius °C.Display Resolution1°C, or 0.1°CifPt100 inputAccuracy+/-0.5% or +/-1 unit of full input rangeControl modePID,ON/OFFControl OutputRelay contact: 3A at 240 VAC.AlarmAlarm 1 ( Upper-limit bias alarm , User can change to beother Alarm Mode.)Power Consumption<;2 WattPower Supply100~240V AC, 50/60Hz.Item DimensionsHD70172*72*70mmMounting Hole SizeHD70169*69mmPackages details :1× PID Digital Temperature Controllernot include thermocouple1x English User Manualpackages weight :0.33kgplease pay attentntion to : this is a kind of hatthis is thermocouple/RTDInputandRelayOutput

Temperature Controllers Digital PID Temperature Controller Max measuring temperatur 1372ºC thermocouple input relay output Dual display For Celsius(C)
