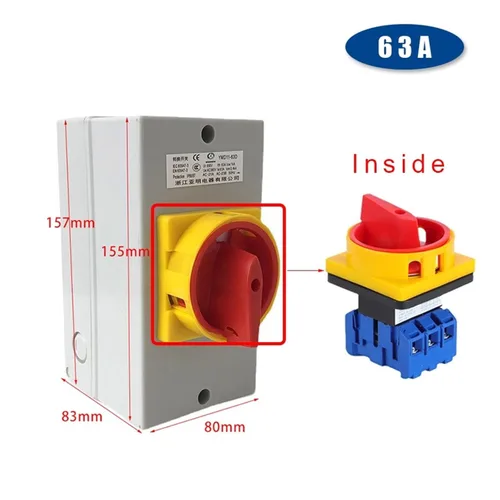

YMD11-63D ON-Off Two Positions Isolator Disconnect Switch 63A 3P Padlock Cam Changeover with IP65 Waterproof Box Enclosure (Color : White Base 3P)

Pushbutton SwitchesUsage:YMD11 series universal conversion switch is mainly used in the electric circuit of AC 50Hz.It is used to control and transform the connected or broke circuit in a infrequently manual operation situation.With a wide range of usage,instead of variety switch,can be as a circuit control switch, test equipment switch,motor control switch and the main control switch,etc...Working conditions:The ambient air temperature is not more than +40 C, and the average temperature within the 24h is no more than +35 C.The lower limit of ambient air temperature is no more than -5 C.The altitude of the installation location is no more than 2000m.When the maximum temperature is +40 C, the relative humidity of the air is not more than 50%.(Allowed to have a higher relative humidity at a lower temperature, for example, 20 C, 90%. )Package Included:1*changeover switchModel Number: YMD11-63D1 (White Base)Rated Current: 63AUi: 690VPole Number: 3PTerminal Number: 6 ScrewsReplace other model number:GLD11 JFD11 LW30 SD11Hole Series Current:25A 32A 40A 63A 80A 100AUsed as the main switch of ventilation equipment,air conditioning and water pump systemsIt can also directly control small-capacity AC motors.

Pushbutton Switches Yaming Isolator Switch Locking Fixed Padlock Rotary With Waterproof Enclosure 32A 690V 3Phases 2 Positions On-off YMD11-32D 3P
